Mobile HD Streaming & Broadcast
Mobile Broadband.
Media Broadcast.
Broadcast from Anywhere. Never Miss a Signal.

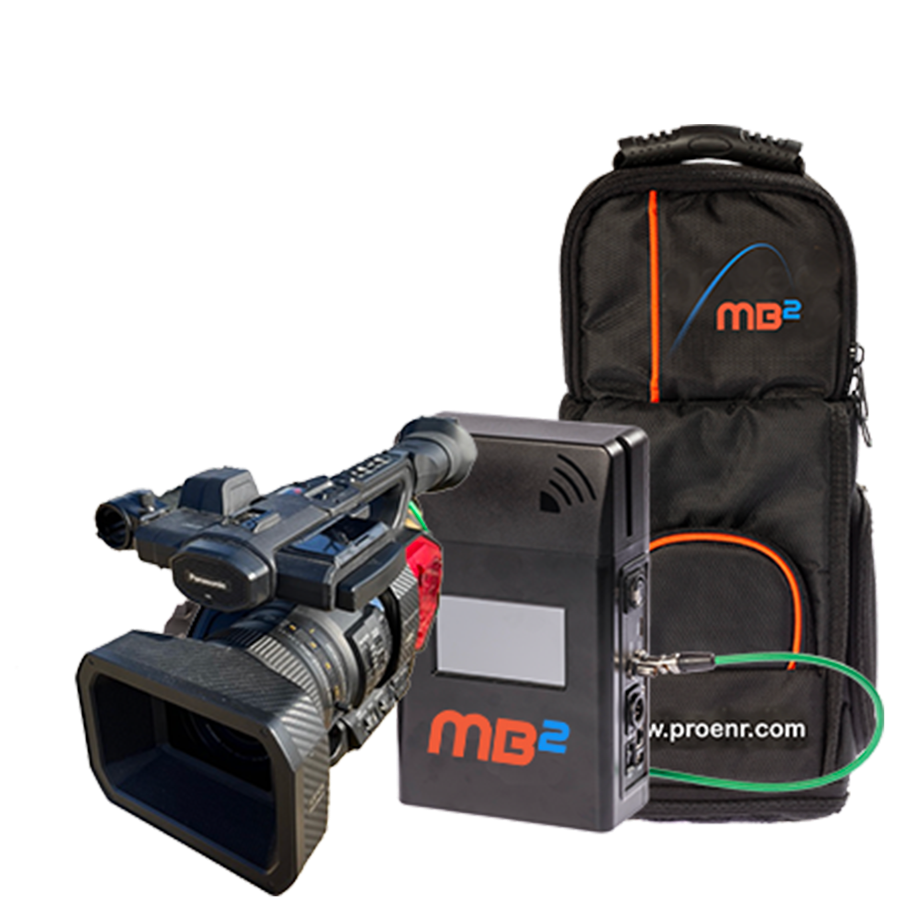

The MB2 model 21Q is a backpack-style wireless video streaming platform powered by our proprietary bonding encoder. It bonds GSM, SATCOM and WiFi channels simultaneously — delivering uninterrupted HD video broadcast and content delivery wherever the story takes you.
Up to 6 embedded 3G/4G modems, WiFi bonding, and satellite connectivity, combined with hardware H.264/H.265 encoding, hot-swap batteries, and the WEBCORE cloud platform, provide complete end-to-end broadcast infrastructure in a backpack.
Key Features
Multi-Channel Bonding
6× GSM/LTE modems + WiFi + 5G option + Satellite ready — simultaneous channel bonding for uninterrupted transmission.
Hardware Video Encoding
Dedicated H.264 AVC / H.265 hardware encoder — realtime HD video at 256 Kbps to 12 Mbps with 4–6 second latency.
Internal Hot-Swap Battery
Replace batteries without interrupting your broadcast — designed for all-day field operation.
Integrated Multi GPS & Remote Management
Track device location and manage streams, settings, and firmware remotely via the WEBCORE platform.
Dual Simultaneous Video Streams
Optional two simultaneous output streams with a dedicated priority management and control channel.
Cloud or On-Premise Server
WEBCORE supports both cloud-hosted virtual infrastructure and dedicated on-premise hardware — your choice.
Professional Interfaces

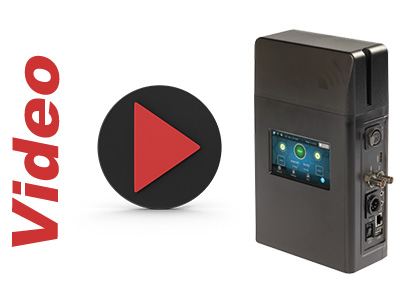

Video Inputs
- ● HDMI · HD-BNC · SDI-BNC · Composite
- ● HD/SDI · SD/SDI · PAL/NTSC formats
- ● H.264 AVC / H.265 Ready
- ● 1080i · 720p · SD resolutions
- ● 256 Kbps – 12 Mbps · 4–6 sec latency

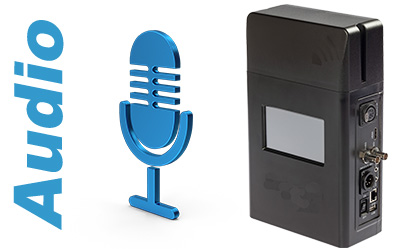

Audio
- ● XLR L/R 4-Channel Balanced Input
- ● HE-MC · LC-MC formats
- ● 48 – 512 Kbps bitrate
- ● Mic and earphone jack
- ● Two-way Intercom / Talk Back

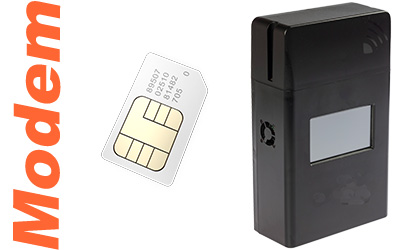

Channel Bonding
- ● Up to 6 embedded 3G/4G modems
- ● Up to 6 external 3G/4G/CDMA
- ● 6 embedded SIM card slots
- ● SIM card Plug & Run capability
- ● WiFi + 5G option + Satellite ready
Built for Professionals in the Field
Technical Specifications
Multi-Channel Bonding
- ● Up to 6 embedded 3G/4G modems
- ● Up to 6 external 3G/4G/CDMA modems
- ● 6 embedded SIM card slots
- ● WiFi + Satellite channels
- ● Variable Bit Rate (VBR)
- ● Forward Error Correction (FEC)
Video & Audio
- ● HDMI, HD-SDI, SDI, Analog inputs
- ● H.264 AVC / H.265 HEVC encoding
- ● 1080i, 720p, SD resolutions
- ● 256 Kbps – 12 Mbps bitrate
- ● XLR L/R 4-channel balanced audio
- ● Two-way intercom & talkback
WEBCORE Platform
- ● Cloud-based media centre
- ● Remote management & monitoring
- ● Stream to multiple destinations
- ● Social media integration
- ● Cloud or Hardware server options
- ● Store-and-forward sync
Your Media Command Centre
Configure, orchestrate and monitor every stream from a single multiscreen interface — wherever you are.
- Simultaneously stream to TV broadcast, web platforms and social media
- RTP, RTMP and RTSP protocol support
- Bidirectional file transfer and background sync
- LCD touch screen, remote web interface and server/client control panel
- Compatible with video conference applications
Server Options

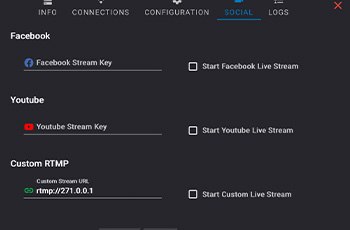

Cloud Server
Virtual resources for HD content delivery. No physical hardware required beyond a computer or tablet. Stream simultaneously to TV channels, web platforms and social media accounts from anywhere.

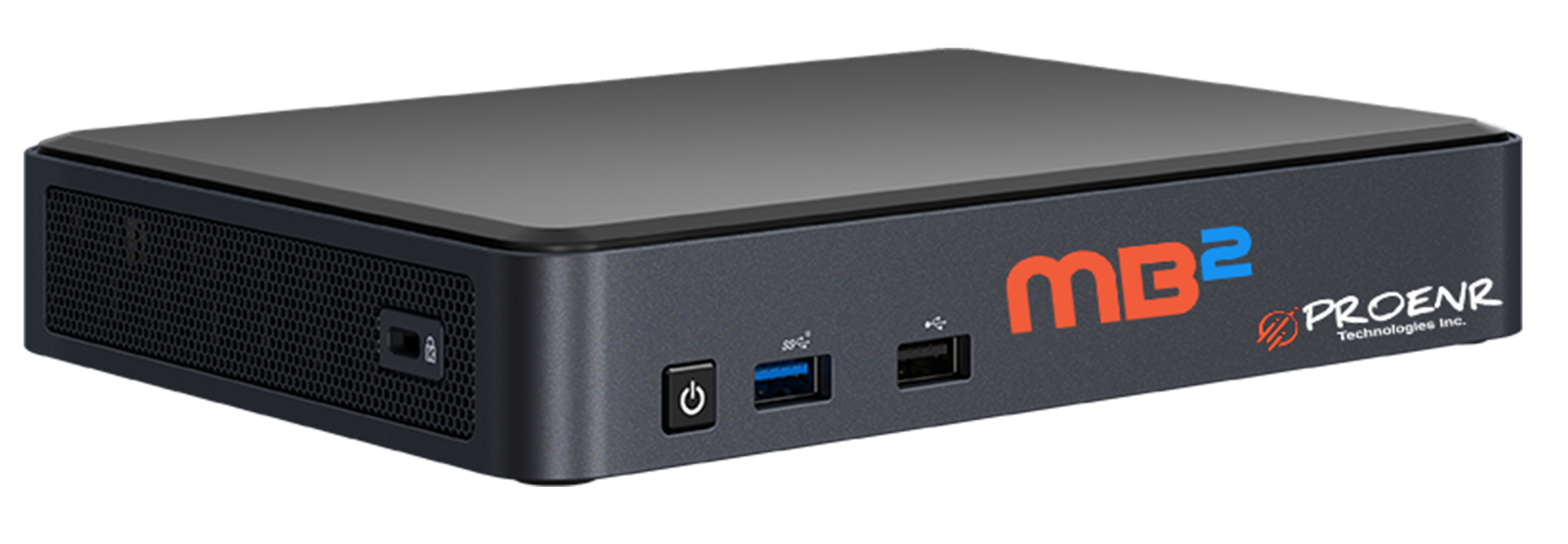

Hardware Server
Secure on-premise content delivery with SDI interface. Supports two-way voice communication and is ideal for broadcast facilities requiring direct hardware integration and local control.
Rental Service — Available in Canada
MB2 rental and streaming services are currently available across Canada. If you are outside Canada, submit a request with your country and location and we will notify you when services expand to your area.
